High voltage phototransistor output optocoupler, surface mountable in a 6-pin DIP package. Features include a maximum collector current of 100mA, a maximum output voltage of 80V, and a collector-emitter saturation voltage of 1V. Operates with a forward current of 80mA and a maximum input current of 80mA. This RoHS compliant component offers a fall time of 5µs and a power dissipation of 300mW, with an operating temperature range of -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power300mW
Quick Jump:
Technical Specifications
Onsemi 4N38SR2M technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
1V
Collector-emitter Voltage-Max
1V
Fall Time
5us
Forward Current
80mA
Input Type
DC
Lead Free
Lead Free
Max Collector Current
100mA
Max Input Current
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
100mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
300mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Weight
0.81g
Compliance
RoHS
Compliant
Datasheet
Onsemi 4N38SR2M Datasheet
Download the complete datasheet for Onsemi 4N38SR2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

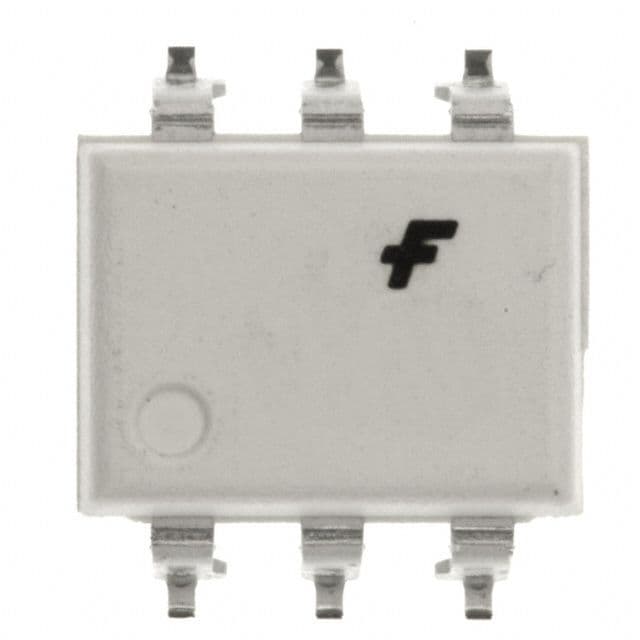

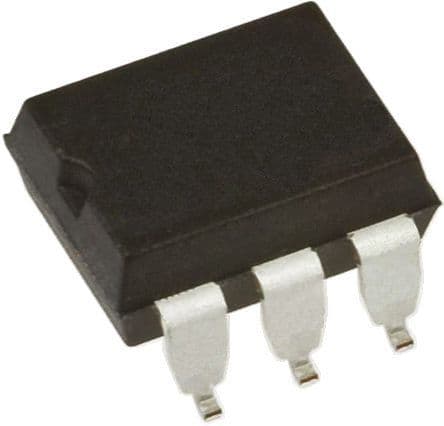

Product Images
