Technical Specifications
Onsemi 6N137SVM technical specifications.
General
Package/Case
SMD/SMT
Contact Plating
Tin, Matte
Data Rate
10Mbps
Fall Time
10ns
Forward Current
50mA
Input Type
DC
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
50mA
Package Quantity
1000
Packaging
Tape and Reel
Propagation Delay
75ns
RoHS Compliant
Yes
Weight
0.72g
Compliance
RoHS
Compliant
Datasheet
Onsemi 6N137SVM Datasheet
Download the complete datasheet for Onsemi 6N137SVM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

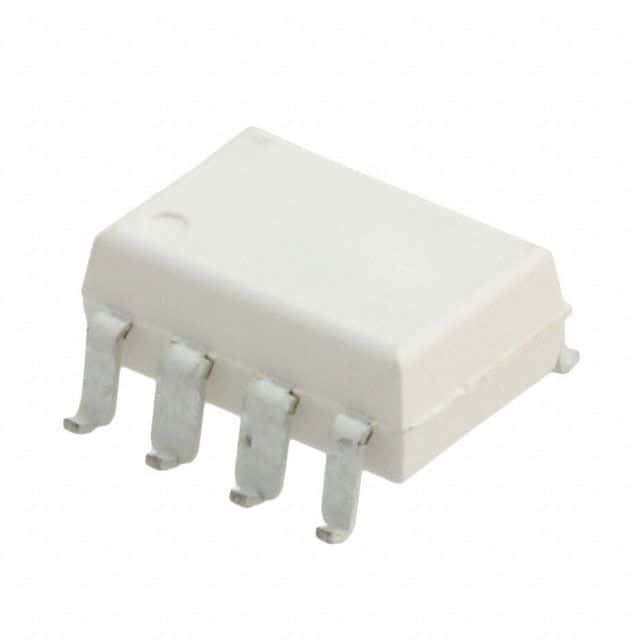

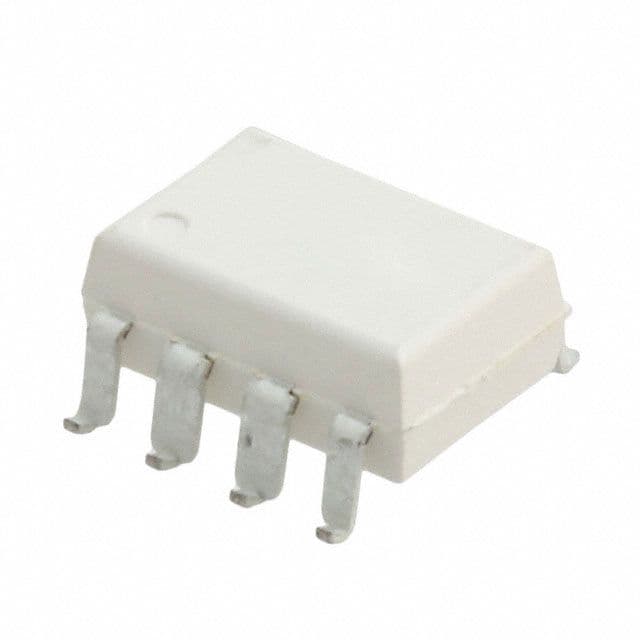

Product Images
