General purpose, single-channel optocoupler with DC input and logic IC output. Features a high current transfer ratio of 1300%, 2.5kV isolation voltage, and a maximum collector current of 60mA. Designed for surface mount (SMD/SMT) applications with a maximum operating temperature of 85°C. Operates with a forward current of 20mA and an input current of 1.6mA.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi 6N139S technical specifications.
General
| Package/Case | SMD/SMT |
| Current Transfer Ratio | 1300% |
| Fall Time | 25us |
| Forward Current | 20mA |
| Input Current | 1.6mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 60mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 18V |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 60mA |
| Output Voltage | 18V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Weight | 0.027937oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi 6N139S Datasheet
Download the complete datasheet for Onsemi 6N139S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

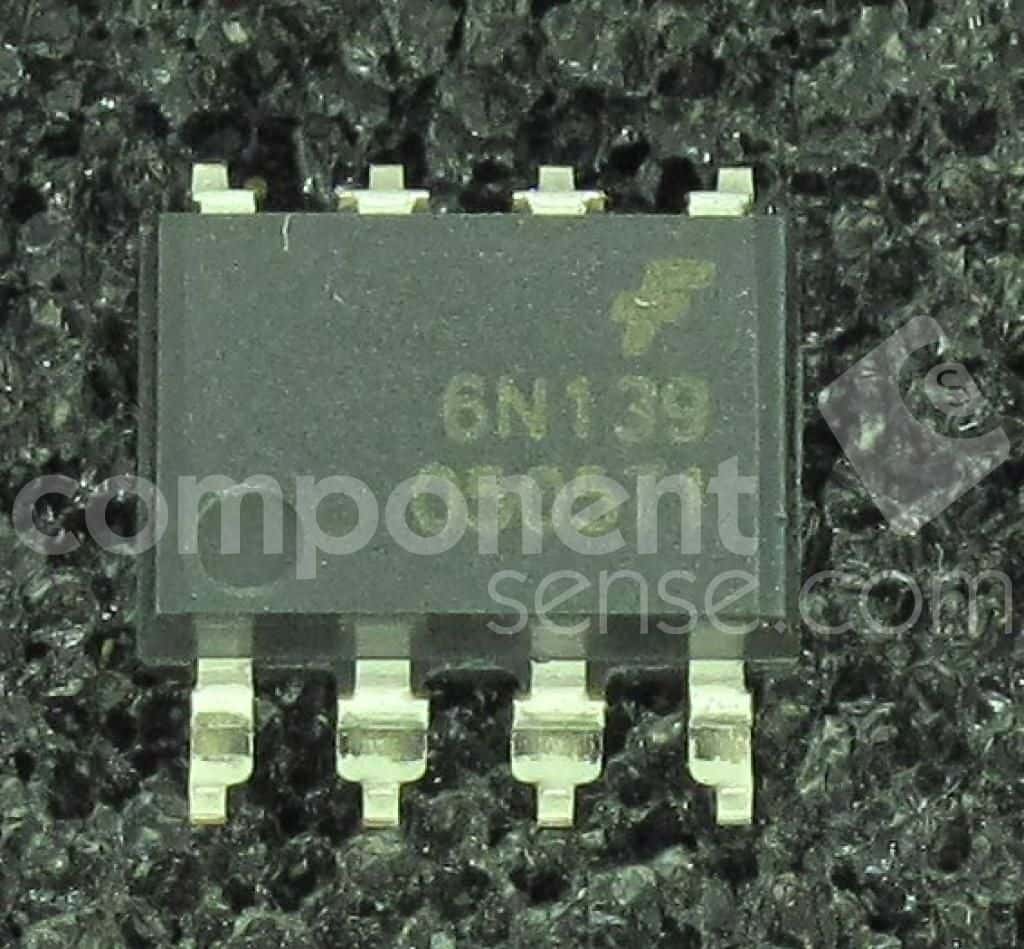

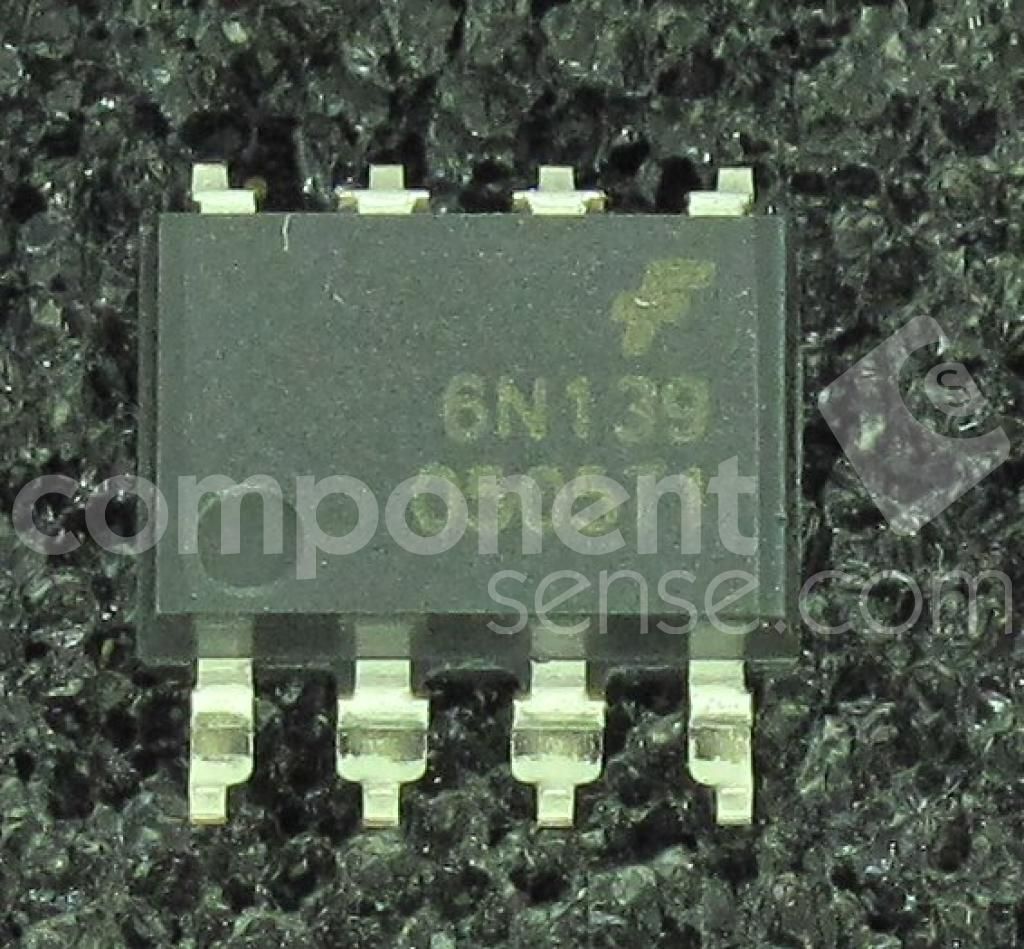

Product Images
