Technical Specifications
Onsemi BD682-S technical specifications.
General
| Package/Case | TO-126 |
| Collector Base Voltage (VCBO) | -100V |
| Collector Emitter Breakdown Voltage | 22V |
| Collector Emitter Saturation Voltage | 2.5V |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 500mV |
| Current Rating | -4A |
| Emitter Base Voltage (VEBO) | -5V |
| hFE Min | 750 |
| Lead Free | Lead Free |
| Max Collector Current | 4A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 36W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Bulk |
| Polarity | PNP |
| Radiation Hardening | No |
| Transition Frequency | 3MHz |
| DC Rated Voltage | -100V |
| Weight | 0.761g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BD682-S Datasheet
Download the complete datasheet for Onsemi BD682-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

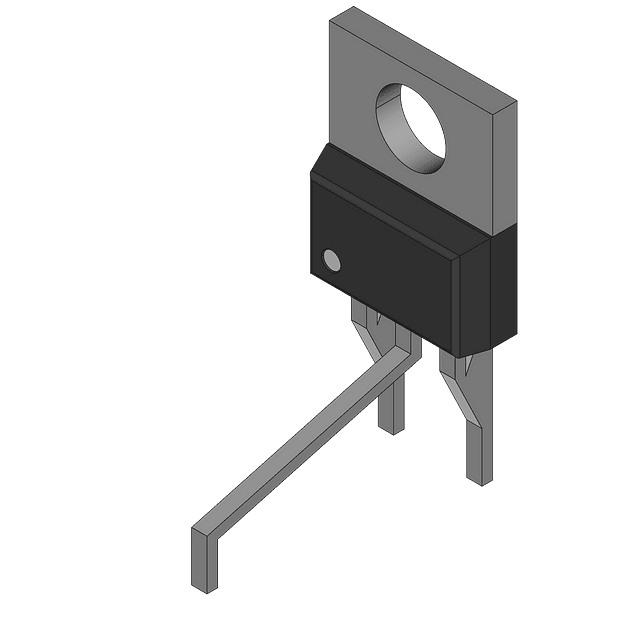

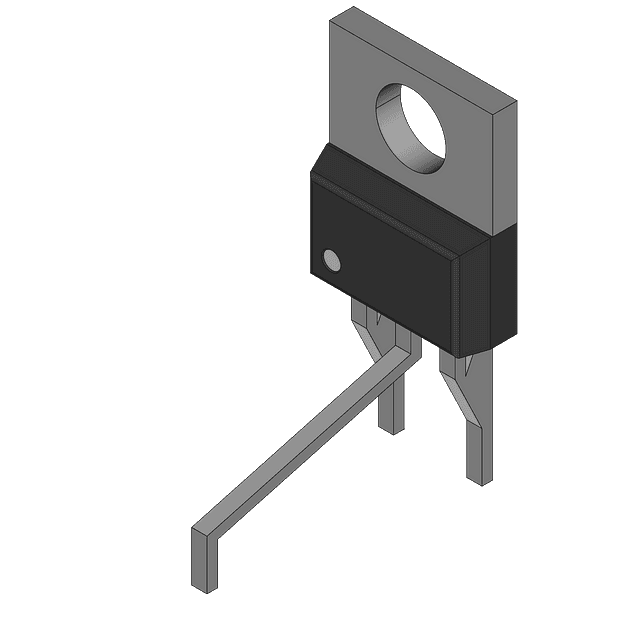

Product Images
