The BZX84-C6V8 is a surface mount zener diode with a working voltage of 6.8V and a tolerance of 5%. It has a maximum power dissipation of 350mW and a maximum reverse current of 2uA. The diode is packaged in a SOT-23 case and is lead free. It has an operating temperature range of -55°C to 150°C.
PackageSOT-23
Capacitance155pF
Voltage Rating6.8V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi BZX84-C6V8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi BZX84-C6V8 technical specifications.
General
| Capacitance | 155pF |
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| ESD Protection | No |
| Height | 0.93mm |
| Impedance | 15R |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 350mW |
| Reach SVHC Compliant | No |
| Tolerance | 6% |
| DC Rated Voltage | 6.8V |
| Voltage Tolerance | 5% |
| Width | 1.3mm |
| Working Voltage | 6.8V |
| Zener Current | 5mA |
| Zener Voltage | 6.8V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi BZX84-C6V8 Datasheet
Download the complete datasheet for Onsemi BZX84-C6V8 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

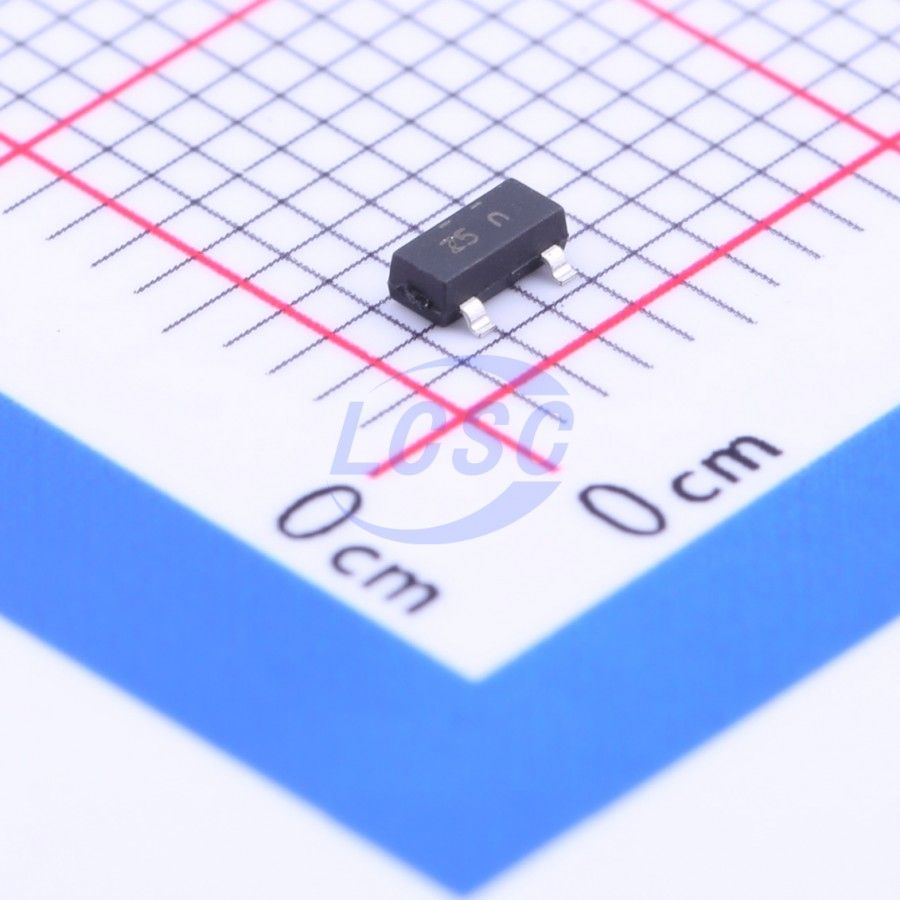

Product Images
