General purpose, 6-pin DIP phototransistor output optocoupler featuring 5.25kV isolation voltage and 400mV collector-emitter voltage. Offers a 320% current transfer ratio with a maximum output current of 50mA and a forward current of 60mA. Operates across a -55°C to 100°C temperature range with 250mW power dissipation. Through-hole mounting and lead-free construction ensure broad application compatibility.
PackagePDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi CNY174VM technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 320% |
| Fall Time | 3500ns |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.25kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.855g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CNY174VM Datasheet
Download the complete datasheet for Onsemi CNY174VM to view detailed technical specifications.
No datasheet is available for this part.

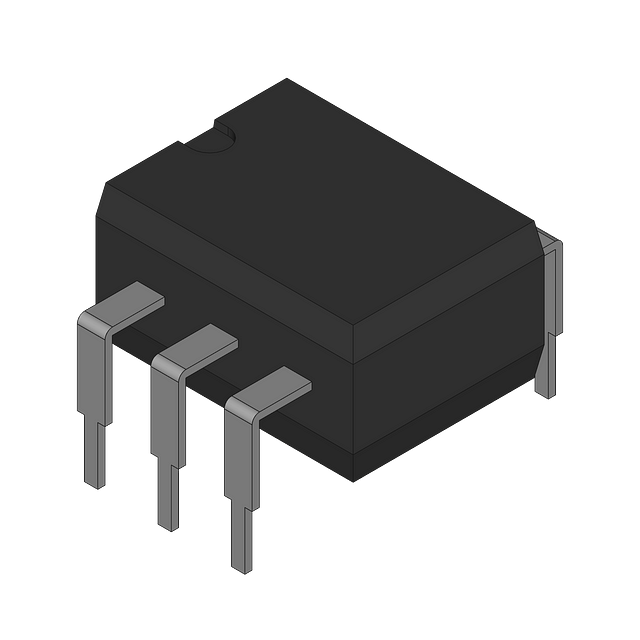

Product Images
