Technical Specifications
Onsemi FAN2564UC25X technical specifications.
General
| Accuracy | 1% |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Min Output Voltage | 2.5V |
| Max Supply Current | 200uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 75uA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Weight | 0.042g |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi FAN2564UC25X Datasheet
Download the complete datasheet for Onsemi FAN2564UC25X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

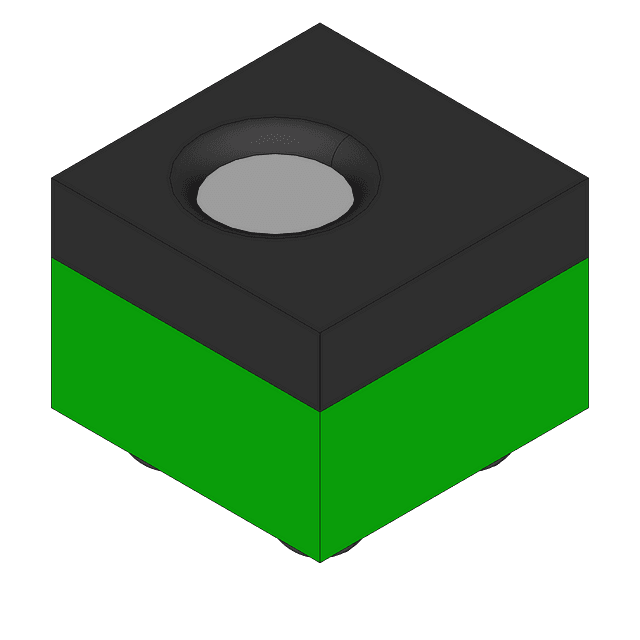

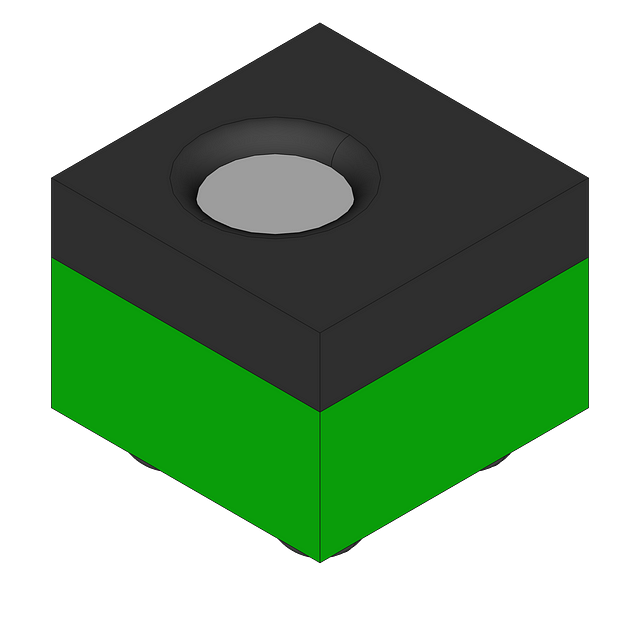

Product Images
