Dual P-Channel MOSFET, 30V drain-source breakdown voltage, 7A continuous drain current, and 23mΩ drain-source resistance. Features include a 25ns fall time, 13ns turn-on delay, and 48ns turn-off delay. Operates from -55°C to 175°C, with a maximum power dissipation of 2W. Packaged in SOIC for surface mounting, supplied on a 2500-piece tape and reel. RoHS compliant.
PackageSOIC
Voltage30V
Current7A
Current Rating-7A
Quick Jump:
Technical Specifications
Onsemi FDS4935A technical specifications.
General
Package/Case
SOIC
Continuous Drain Current (ID)
7A
Current
7A
Current Rating
-7A
Drain to Source Breakdown Voltage
-30V
Drain to Source Resistance
23mR
Drain to Source Voltage (Vdss)
30V
Dual Supply Voltage
-30V
Fall Time
25ns
Gate to Source Voltage (Vgs)
20V
Height
1.5mm
Input Capacitance
1.233nF
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
900mW
Mount
Surface Mount
Nominal Vgs
-1.6V
Number of Elements
2
Package Quantity
2500
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
2W
Radiation Hardening
No
Rds On Max
23mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerTrench®
Termination
SMD/SMT
Threshold Voltage
-1.6V
Turn-Off Delay Time
48ns
Turn-On Delay Time
13ns
Voltage
30V
DC Rated Voltage
-30V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDS4935A Datasheet
Download the complete datasheet for Onsemi FDS4935A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

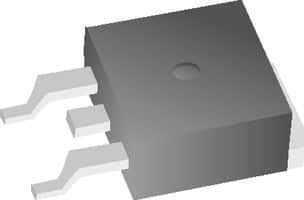

Product Images
