Technical Specifications

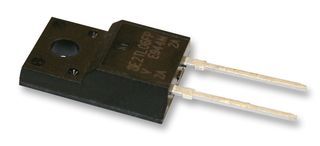

Onsemi FFPF30UP20STTU technical specifications.
General
Average Rectified Current
30A
Package/Case
TO-220-2
Element Configuration
Single
Forward Current
30A
Max Forward Surge Current (Ifsm)
300A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
100uA
Max Reverse Voltage (DC)
200V
Max Surge Current
300A
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
300A
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
50ns
Reverse Voltage
200V
RoHS Compliant
Yes
Weight
2.565g
Compliance
RoHS
Compliant
Datasheet
Onsemi FFPF30UP20STTU Datasheet
Download the complete datasheet for Onsemi FFPF30UP20STTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
