DC-IN 1-CH Optocoupler with Phototransistor output, featuring 5kV isolation voltage and 50kHz bandwidth. This surface mount component offers a 200% current transfer ratio, 50mA maximum collector current, and 20mA forward current. Operating temperature range is -40°C to 85°C, with a 400mV collector-emitter saturation voltage. Packaged in tape and reel, this RoHS compliant device is designed for general optoelectronic isolation applications.
PackageSMD/SMT
MountingSurface Mount
Power145mW
Quick Jump:
Technical Specifications
Onsemi FOD2741BSDV technical specifications.
General
Bandwidth
50kHz
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
400mV
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
200%
Forward Current
20mA
Height
3.94mm
Input Current
10mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Length
9.91mm
Max Collector Current
50mA
Max Input Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
30V
Max Power Dissipation
145mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Type
Phototransistor
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
145mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
2.495V
RoHS Compliant
Yes
Weight
0.72g
Width
6.86mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FOD2741BSDV Datasheet
Download the complete datasheet for Onsemi FOD2741BSDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

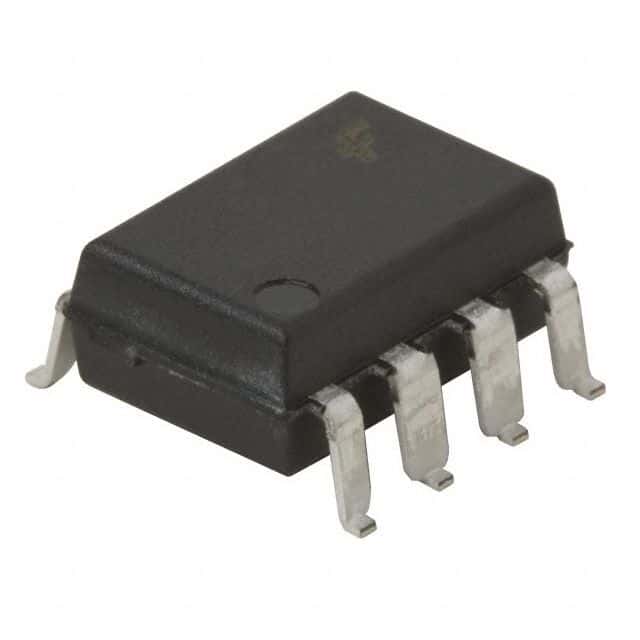

Product Images
