Technical Specifications
Onsemi FOD3182V technical specifications.
General
Approvals
UL, VDE
Package/Case
DIP
Fall Time
24ns
Forward Current
25mA
High Level Output Current
2.5A
Input Current
16mA
Isolation Voltage
5kV
Lead Free
Lead Free
Low Level Output Current
2.5A
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
295mW
Mount
Through Hole
Number of Channels
1
Package Quantity
1000
Packaging
Rail/Tube
Propagation Delay
210ns
Pulse Width Distortion (PWD)
65ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.891g
Compliance
RoHS
Compliant
Datasheet
Onsemi FOD3182V Datasheet
Download the complete datasheet for Onsemi FOD3182V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

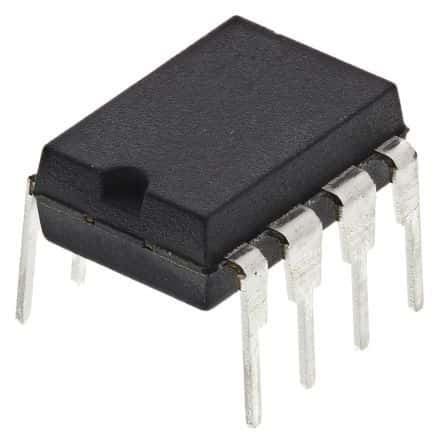

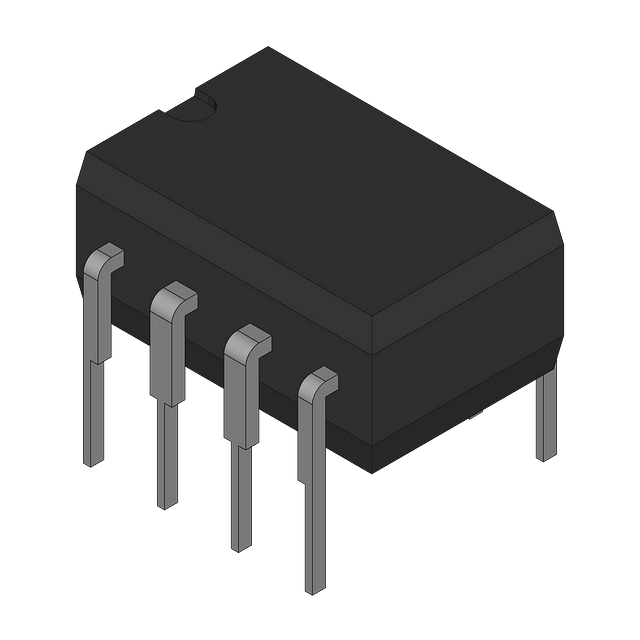

Product Images
