General purpose Triac driver optocoupler featuring 5kV isolation voltage and 300mA output current. Surface mount package with 20mA input current and 1.5V maximum input voltage. Operates across a -55°C to 100°C temperature range, with a 500mW power dissipation. Includes 52µs fall time and 60µs turn-on delay time.
PackageSMD/SMT
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Onsemi FOD4208SV technical specifications.
General
| Package/Case | SMD/SMT |
| Fall Time | 52us |
| Forward Current | 30mA |
| Hold Current | 500uA |
| Input Current | 20mA |
| Isolation Voltage | 5kV |
| Max Input Current | 30mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 300mA |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Nominal Input Voltage | 1.28V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 300mA |
| Packaging | Bulk |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 60us |
| Weight | 0g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD4208SV Datasheet
Download the complete datasheet for Onsemi FOD4208SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

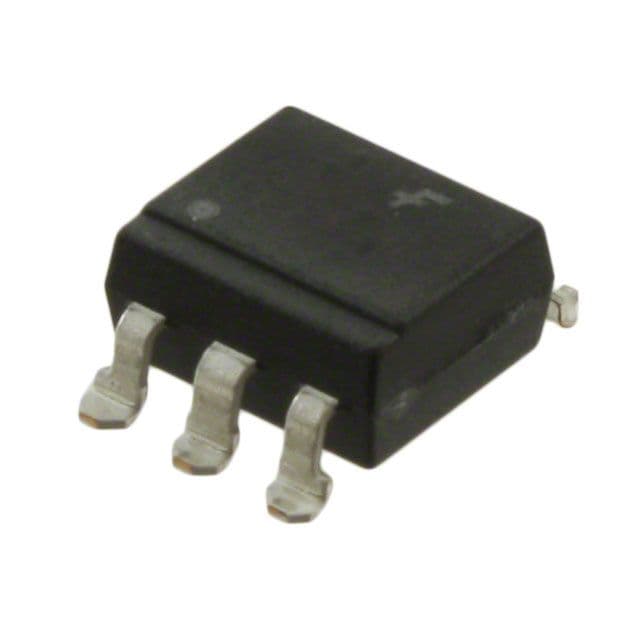

Product Images
