1-channel AC input optocoupler with transistor DC output. Features 5kV isolation voltage, 200mV collector-emitter saturation voltage, and 70V maximum output voltage. Forward and input current rated at 50mA, with a 150% current transfer ratio. Surface mountable in a 4-pin PDIP SMD package, operating from -55°C to 105°C. RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Onsemi FOD814A3SD technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
200mV
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
150%
Fall Time
18000ns
Forward Current
50mA
Height
3.85mm
Input Current
50mA
Input Type
AC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0g
Compliance
RoHS
Compliant
Datasheet
Onsemi FOD814A3SD Datasheet
Download the complete datasheet for Onsemi FOD814A3SD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

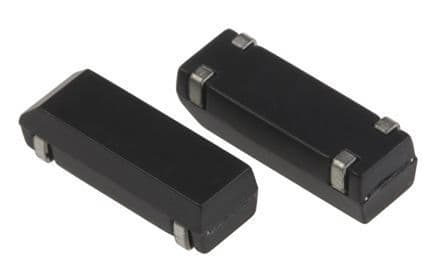

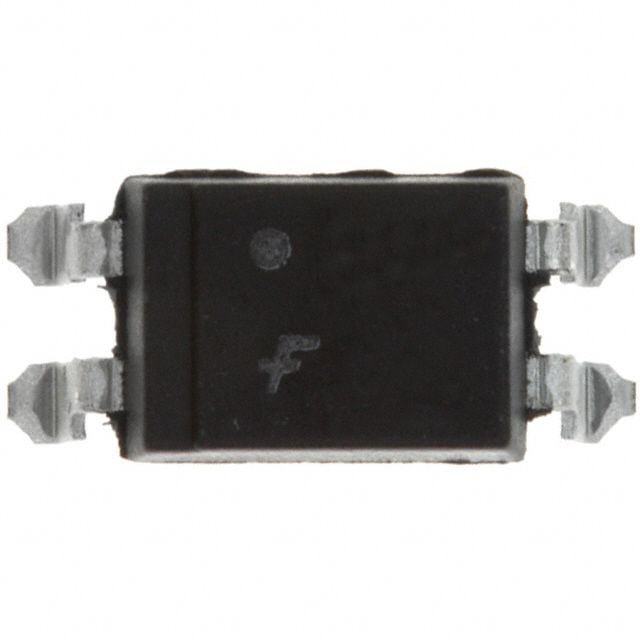

Product Images
