Single-channel optocoupler featuring AC input and transistor DC output. Surface mountable in a 4-pin PDIP package, this component offers a maximum collector current of 50mA and a collector-emitter voltage of 200mV. It operates across a wide temperature range from -55°C to 105°C with a current transfer ratio of 150%. The device is RoHS compliant and lead-free, packaged in cut tape for efficient assembly.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FOD814ASD technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 150% |
| Fall Time | 18us |
| Forward Current | 50mA |
| Height | 4mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Collector Current | 50mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Weight | 0g |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD814ASD Datasheet
Download the complete datasheet for Onsemi FOD814ASD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

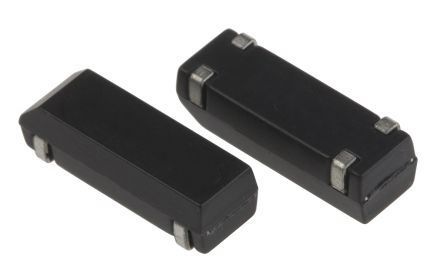

Product Images
