1-channel DC input optocoupler with transistor output, featuring a 5kV isolation voltage and a 200mV collector-emitter saturation voltage. This through-hole mounted component offers a 160% current transfer ratio, 50mA forward and output current, and a maximum output voltage of 70V. Operating within a -55°C to 110°C temperature range, it is housed in a 4-pin PDIP package and is RoHS compliant.
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Onsemi FOD817A technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 160% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Height | 4.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 200mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 2000 |
| Packaging | Box |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.408g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FOD817A Datasheet
Download the complete datasheet for Onsemi FOD817A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

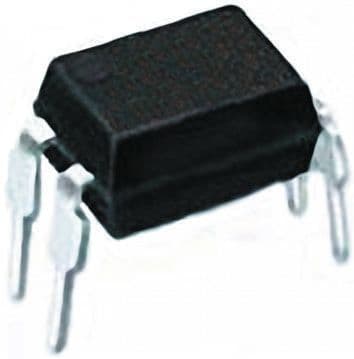

Product Images
