High-temperature phototransistor, OptoHiT™ series, offers 3.75kV isolation voltage and 75V output voltage. Features include a 360% current transfer ratio, 30mA max collector current, and 20mA forward current. Designed for surface mount with a SOIC package, it operates from -40°C to 125°C. This general-purpose optocoupler boasts 150mW power dissipation and is RoHS compliant.
PackageSOIC
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi FODM8801BR2 technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 360% |
| Fall Time | 5.5us |
| Forward Current | 20mA |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Max Collector Current | 30mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 75V |
| Max Power Dissipation | 40mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 30mA |
| Output Voltage | 75V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Series | OptoHit™ |
| Weight | 0.12g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FODM8801BR2 Datasheet
Download the complete datasheet for Onsemi FODM8801BR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

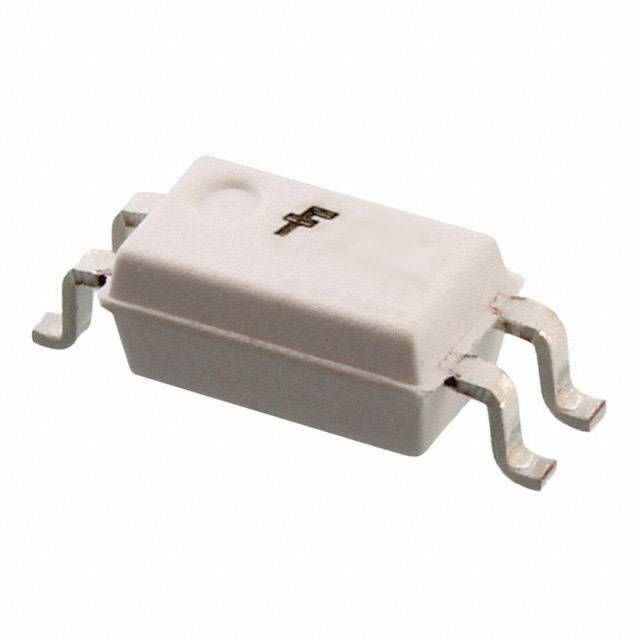

Product Images
