AC input phototransistor output optocoupler in a 6-pin DIP package. Features a 7.5kV isolation voltage and 400mV collector-emitter saturation voltage. Supports up to 60mA forward current and 50mA max collector current. Through-hole mountable with a maximum operating temperature of 100°C. RoHS compliant and supplied in bulk packaging.
PackagePDIP
MountingThrough Hole
Power250mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi H11AA4M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi H11AA4M technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Forward Current | 60mA |
| Height | 5.08mm |
| Input Type | AC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.855g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi H11AA4M Datasheet
Download the complete datasheet for Onsemi H11AA4M to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

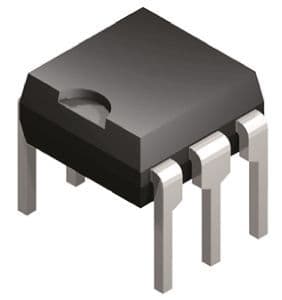

Product Images
