Single-channel DC input optocoupler with Darlington transistor output, featuring a 7.5kV isolation voltage and a 1V collector-emitter saturation voltage. This through-hole mount component offers a maximum output voltage of 100V and a forward current of 60mA, operating within a temperature range of -40°C to 100°C. The 6-pin PDIP package provides 260mW of power dissipation and is RoHS compliant.
PackageDIP
MountingThrough Hole
Power260mW
Quick Jump:
Technical Specifications
Onsemi H11G1M technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 1V |
| Collector-emitter Voltage-Max | 1V |
| Fall Time | 100us |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 100V |
| Max Power Dissipation | 260mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 260mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Weight | 0.855g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi H11G1M Datasheet
Download the complete datasheet for Onsemi H11G1M to view detailed technical specifications.
No datasheet is available for this part.

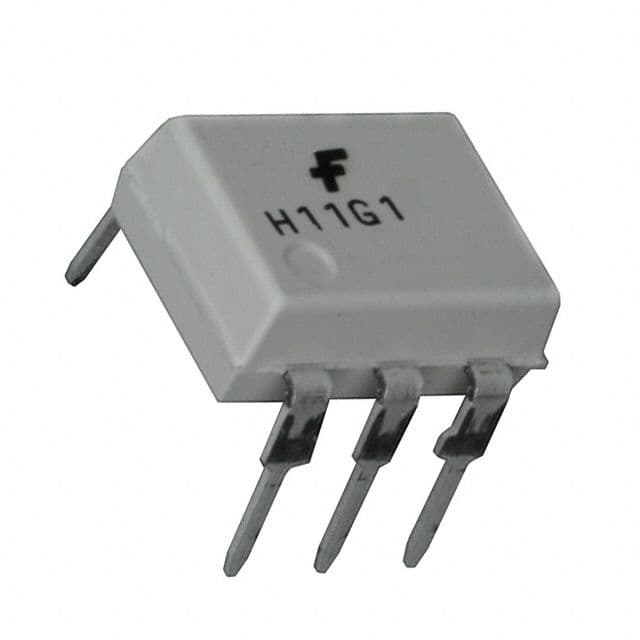

Product Images
