High-speed logic output optocoupler featuring a single channel with an open-collector output. This unidirectional device supports DC input and offers a maximum data rate of 1Mbps with a fall time of 0.1µs. It provides 7.5kV isolation voltage and operates within a temperature range of -40°C to 85°C. The component is surface mountable in a 6-pin PDIP package, with a maximum forward current of 60mA and output current of 50mA.
PackageSMD/SMT
MountingSurface Mount
PolarityInverting
Power250mW
Quick Jump:
Technical Specifications
Onsemi H11L1SVM technical specifications.
General
| Package/Case | SMD/SMT |
| Data Rate | 1Mbps |
| Direction | Unidirectional |
| Fall Time | 0.1us |
| Forward Current | 60mA |
| Height | 3.53mm |
| Input Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 7.5kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Max Input Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 15V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Output Voltage | 16V |
| Packaging | Bulk |
| Polarity | Inverting |
| Power Dissipation | 250mW |
| Propagation Delay | 4000ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 4000ns |
| Weight | 0.81g |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi H11L1SVM Datasheet
Download the complete datasheet for Onsemi H11L1SVM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

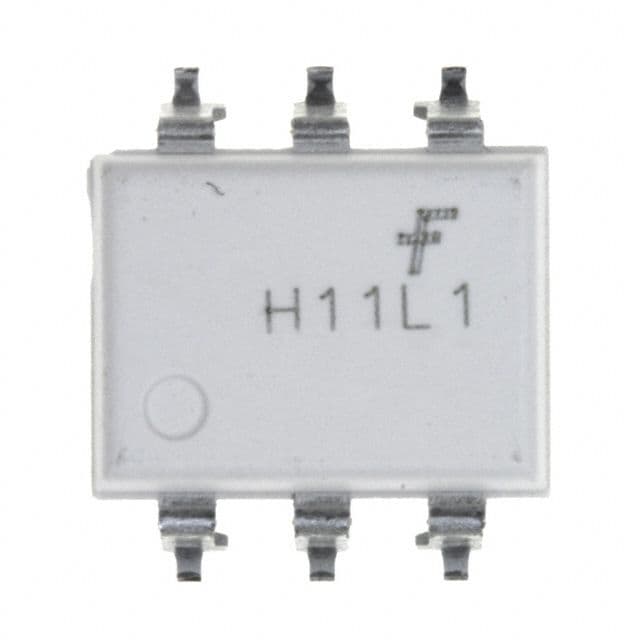

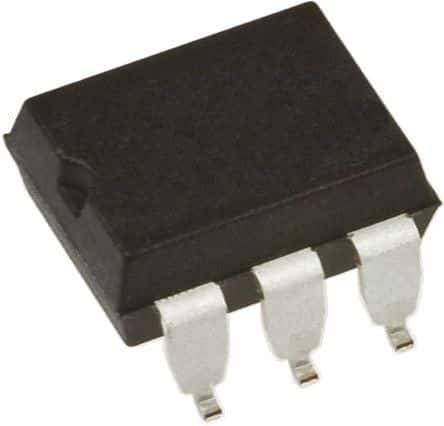

Product Images
