H11L2M

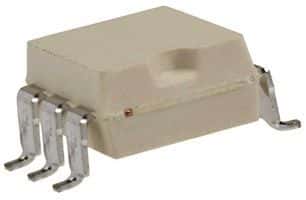

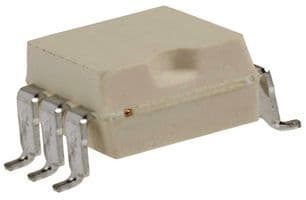

High-speed logic output optocoupler featuring an open-collector output and DC input. This unidirectional, single-channel device offers a 7.5kV isolation voltage and a maximum data rate of 1Mbps. Key specifications include a 16V collector-emitter breakdown voltage, 50mA maximum output current, and a 10mA input current. The component is housed in a 6-pin PDIP package suitable for through-hole mounting, with a propagation delay of 4µs and a fall time of 100ns. It operates within a temperature range of -40°C to 85°C and is RoHS compliant.
