The HCPL-2601 is a 1-channel isolated gate driver from Onsemi, packaged in a DIP with a through-hole mount. It operates at a maximum input current of 50mA and a maximum output voltage of 7V. The device features a data rate of 10Mbps and a fall time of 12ns. It has an isolation voltage of 2.5kV and is lead-free compliant.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi HCPL-2601 technical specifications.
General
| Package/Case | DIP |
| Data Rate | 10Mbps |
| Fall Time | 12ns |
| Input Current | 15mA |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Output Voltage | 7V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Voltage | 7V |
| Reach SVHC Compliant | No |
| DC Rated Voltage | 7V |
| Weight | 0.819g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HCPL-2601 Datasheet
Download the complete datasheet for Onsemi HCPL-2601 to view detailed technical specifications.
No datasheet is available for this part.

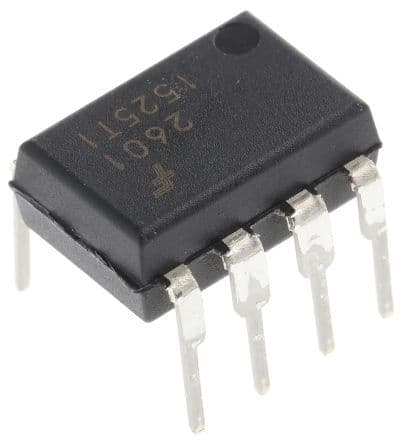

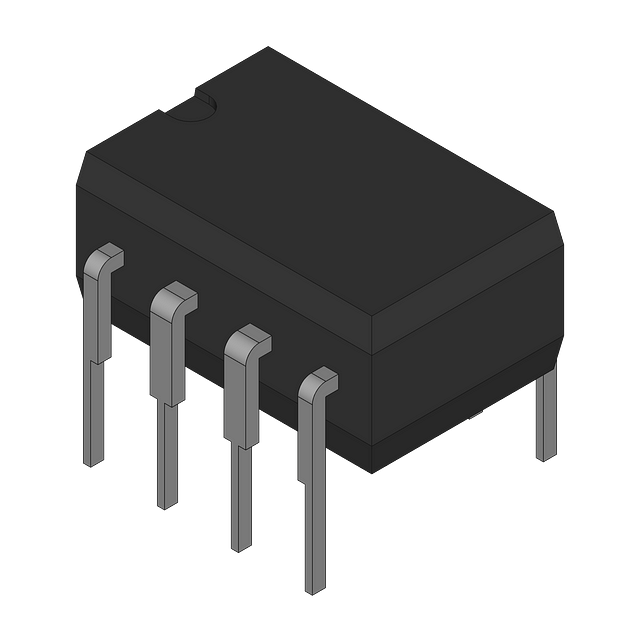

Product Images
