Onsemi
HCPL-3700
ON SEMICONDUCTOR - HCPL-3700 - Optocoupler, Darlington Output, 1 Channel, DIP, 8 Pins, 2.5 kV
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi HCPL-3700 technical specifications.
General
| Package/Case | DIP |
| Input Current | 3.7mA |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Output Voltage | 20V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Reach SVHC Compliant | No |
| DC Rated Voltage | 18V |
| Weight | 0.819g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HCPL-3700 Datasheet
Download the complete datasheet for Onsemi HCPL-3700 to view detailed technical specifications.
No datasheet is available for this part.

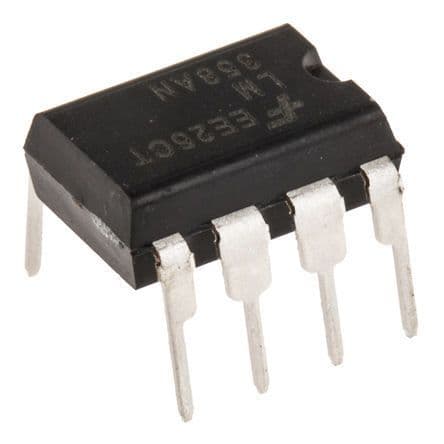

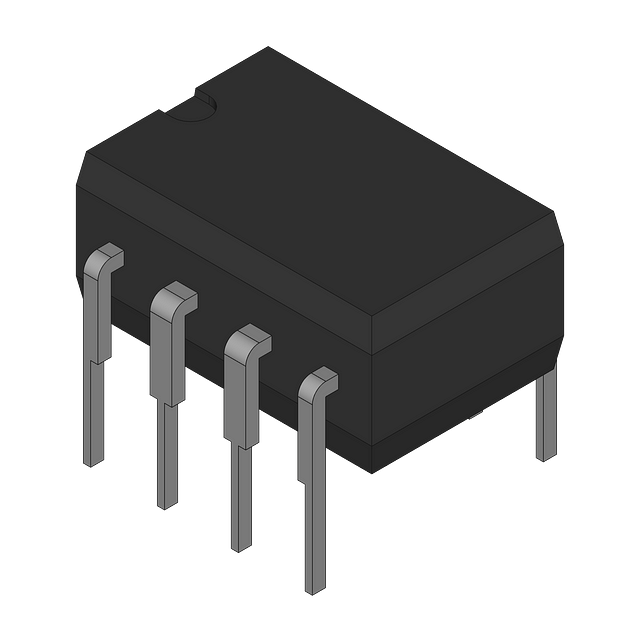

Product Images
