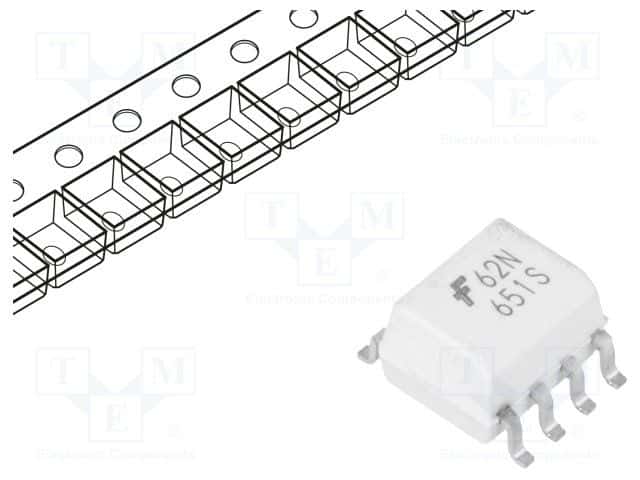

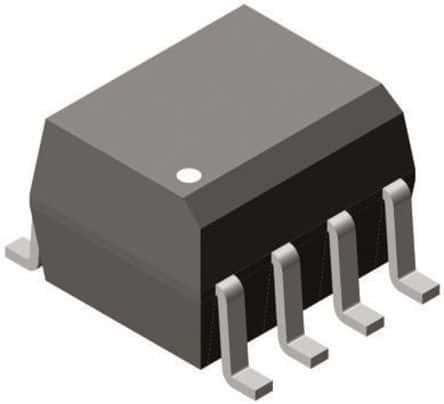

Dual channel optocoupler for high-speed data transmission up to 10Mbps. Features 2.5kV isolation voltage and unidirectional signal transfer. Operates with a 3.3V supply and offers a propagation delay of 90ns with a 75ns fall time. Surface mountable in a SOIC package, this component supports a forward current of 50mA and an output current of 15mA per channel.
PackageSOIC
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Onsemi HCPL062N technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Direction | Unidirectional |
| Fall Time | 75ns |
| Forward Current | 50mA |
| Height | 3.63mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Length | 5.13mm |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 7V |
| Max Power Dissipation | 85mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 15mA |
| Output Current per Channel | 15mA |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Propagation Delay | 90ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 90ns |
| Weight | 0.252g |
| Width | 4.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HCPL062N Datasheet
Download the complete datasheet for Onsemi HCPL062N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
