Single-channel, surface-mount transistor output optocoupler with a 5kV isolation voltage. Features a 1Mbps data rate, 38% current transfer ratio, and 250ns turn-off delay. Operates with a 25mA forward current and provides up to 8mA output current per channel. Designed for general optoelectronic applications, this RoHS compliant component offers a wide operating temperature range from -40°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Onsemi HCPL4503SM technical specifications.
General
Package/Case
SMD/SMT
Current Transfer Ratio
38%
Data Rate
1Mbps
Fall Time
0.8us
Forward Current
25mA
Height
5.08mm
Input Current
25mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
8mA
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
20V
Max Power Dissipation
100mW
Max Supply Voltage
20V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
8mA
Output Voltage
20V
Package Quantity
1000
Packaging
Bulk
Power Dissipation
100mW
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
Reverse Voltage
5V
RoHS Compliant
Yes
Turn-Off Delay Time
250ns
Turn-On Delay Time
260ns
Weight
0.72g
Compliance
RoHS
Compliant
Datasheet
Onsemi HCPL4503SM Datasheet
Download the complete datasheet for Onsemi HCPL4503SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

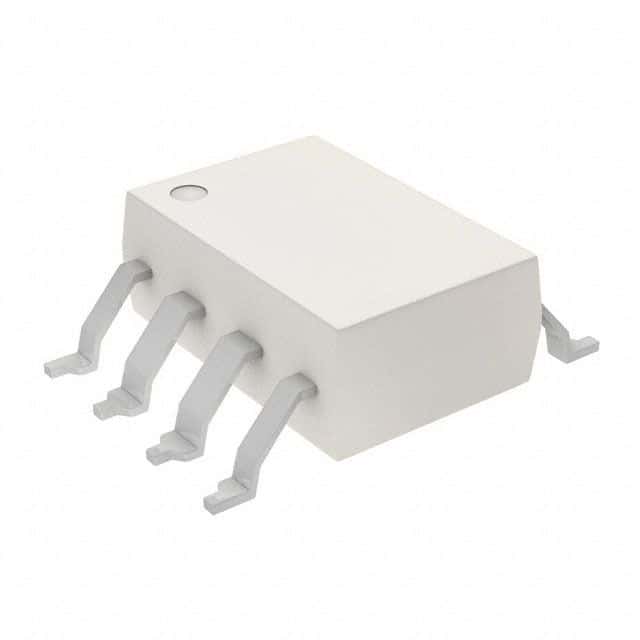

Product Images
