1-channel DC input optocoupler with transistor output, featuring 3.75kV isolation voltage and 80V collector-emitter voltage. This surface mount device operates with a 50mA forward current, 80mA max collector current, and a 1200% current transfer ratio. Housed in a 4-pin mini-flat SMD/SMT package, it offers a max power dissipation of 150mW and operates within a temperature range of -40°C to 100°C. The component is lead-free and RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi HMA124R1 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
1200%
Forward Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Collector Current
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
80mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
150mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Onsemi HMA124R1 Datasheet
Download the complete datasheet for Onsemi HMA124R1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

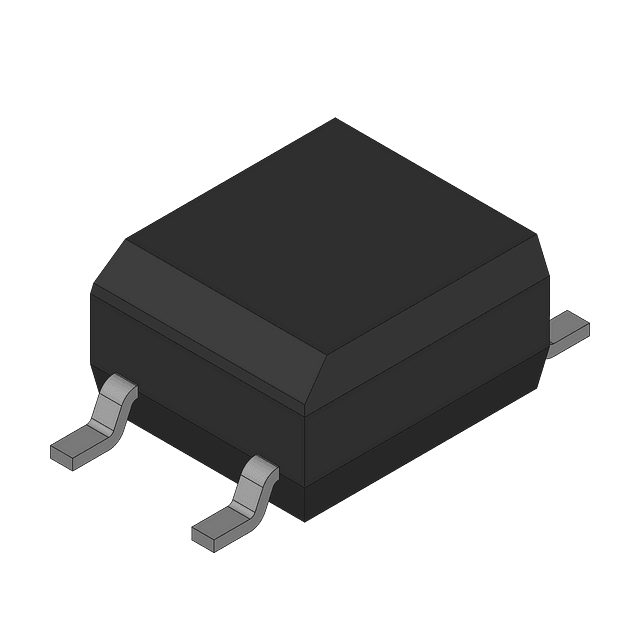

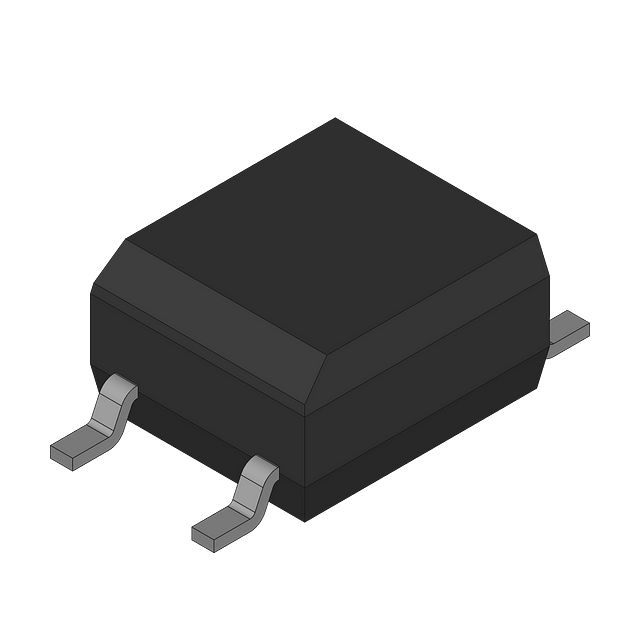

Product Images
