General purpose optocoupler featuring a 1-channel DC input and transistor DC output in a 4-pin Mini-Flat SMD/SMT package. Offers 3.75kV isolation voltage and a maximum collector current of 80mA with a 1200% current transfer ratio. Operates within a -40°C to 100°C temperature range, with a collector-emitter voltage of 80V and a maximum power dissipation of 150mW. Surface mountable and RoHS compliant, supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi HMA124R1V technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
80V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
1200%
Forward Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Collector Current
80mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
80mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
150mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Onsemi HMA124R1V Datasheet
Download the complete datasheet for Onsemi HMA124R1V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

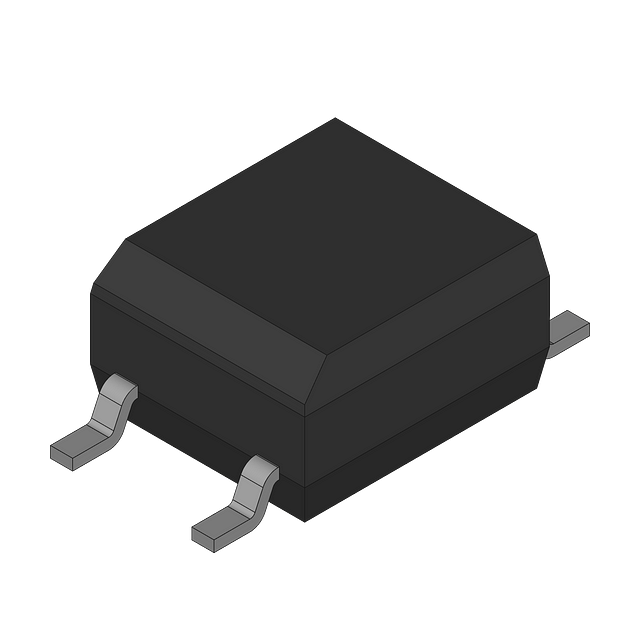

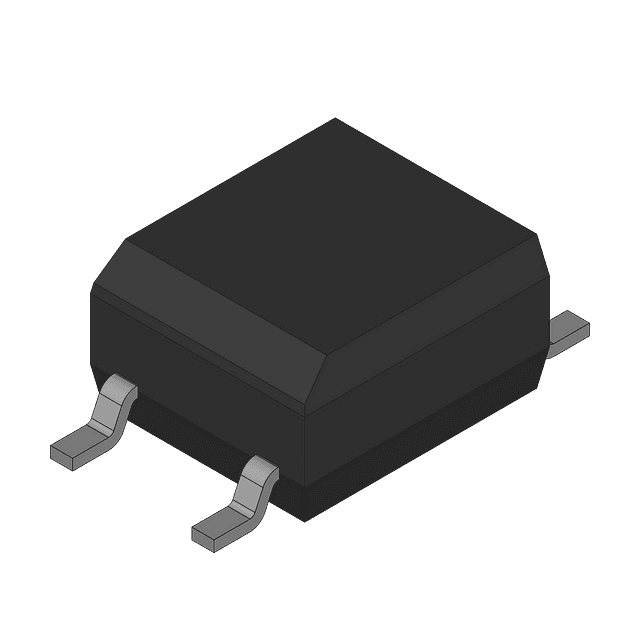

Product Images
