Dual diode, general purpose rectifier with 600V repetitive reverse voltage and 30A forward current. Features 325A peak non-repetitive surge current and 45ns reverse recovery time. Operates from -55°C to 175°C with 200W power dissipation. Through-hole mounting in a TO-247 package. RoHS compliant and lead-free.
PackageTO-247
Voltage600V
Current30A
Capacitance120uF
Quick Jump:
Technical Specifications
Onsemi ISL9K3060G3 technical specifications.
General
Average Rectified Current
30A
Capacitance
120uF
Package/Case
TO-247
Current
30A
Current Rating
30A
Forward Current
30A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
325A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
100uA
Max Reverse Voltage (DC)
600V
Max Surge Current
325A
Mount
Through Hole
Package Quantity
150
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
325A
Power Dissipation
200W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
45ns
Reverse Recovery Time-Max
35ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
Stealth™
Voltage
600V
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Onsemi ISL9K3060G3 Datasheet
Download the complete datasheet for Onsemi ISL9K3060G3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

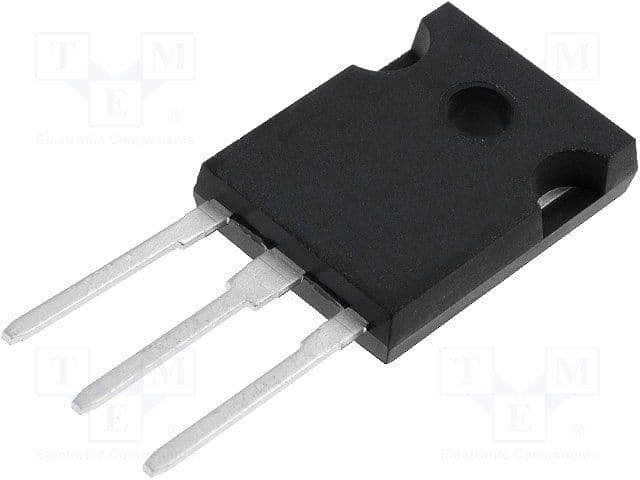

Product Images
