Onsemi
MC14538BFEL
4000/14000/40000 SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, EIAJ, PLASTIC, SOIC-16
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC14538BFEL technical specifications.
General
Package/Case
SOIC
High Level Output Current
-4.2mA
Independent Circuits
2
Lead Free
Contains Lead
Logic Function
Multivibrator
Low Level Output Current
4.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
18V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Elements
2
Operating Supply Voltage
12V
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
95ns
Quiescent Current
700uA
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
4000B
Technology
CMOS
Turn-On Delay Time
600ns
Compliance
RoHS
Compliant
Datasheet
Onsemi MC14538BFEL Datasheet
Download the complete datasheet for Onsemi MC14538BFEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

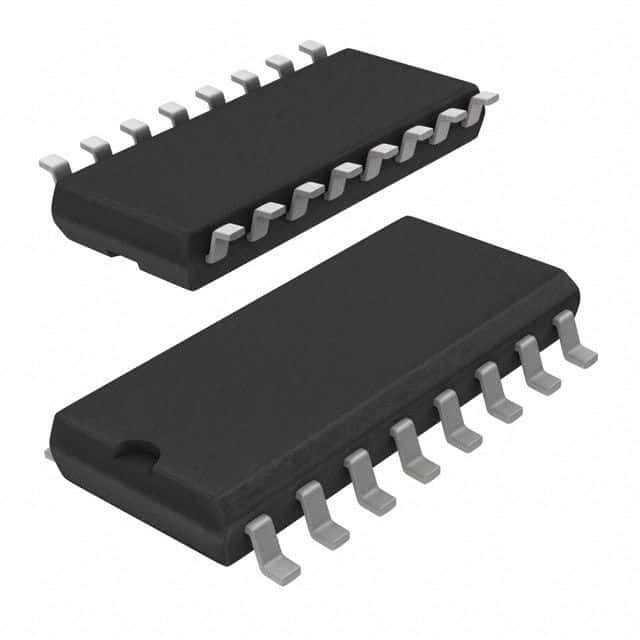

Product Images
