12-stage binary ripple counter, CMOS technology, operating from 2V to 6V supply voltage with a maximum frequency of 50MHz. Features negative edge clock triggering and asynchronous reset. This surface mount SOIC package offers 12 output lines and is RoHS compliant.
Frequency50MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC74HC4040ADG technical specifications.
General
| Package/Case | SOIC |
| Clock Edge Trigger Type | Negative Edge |
| Direction | Up, Unidirectional |
| Frequency | 50MHz |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Counter |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Bits per Element | 12 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 1 |
| Number of Output Lines | 12 |
| Packaging | Rail/Tube |
| Propagation Delay | 25ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Asynchronous |
| RoHS Compliant | Yes |
| Series | 74HC |
| Supply Voltage-Nom | 6V |
| Technology | CMOS |
| Turn-On Delay Time | 115ns |
| Weight | 0.023492oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74HC4040ADG Datasheet
Download the complete datasheet for Onsemi MC74HC4040ADG to view detailed technical specifications.
No datasheet is available for this part.

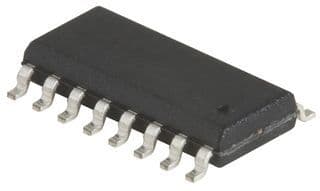

Product Images
