General purpose optocoupler featuring a single-channel transistor output. Offers 5.3kV isolation voltage and a maximum collector current of 150mA. Collector-emitter voltage (VCEO) reaches 30V, with a saturation voltage of 400mV. Operates across a wide temperature range from -55°C to 100°C. Housed in a 6-pin PDIP package for through-hole mounting, supplied in bulk packaging.
PackagePDIP
MountingThrough Hole
Power260mW
Quick Jump:
Technical Specifications
Onsemi MCT5211300W technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
400mV
Forward Current
50mA
Input Type
DC
Isolation Voltage
5.3kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Power Dissipation
260mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
30V
Package Quantity
1000
Packaging
Bulk
Power Dissipation
260mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Series
MCT5211
Compliance
RoHS
Compliant
Datasheet
Onsemi MCT5211300W Datasheet
Download the complete datasheet for Onsemi MCT5211300W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

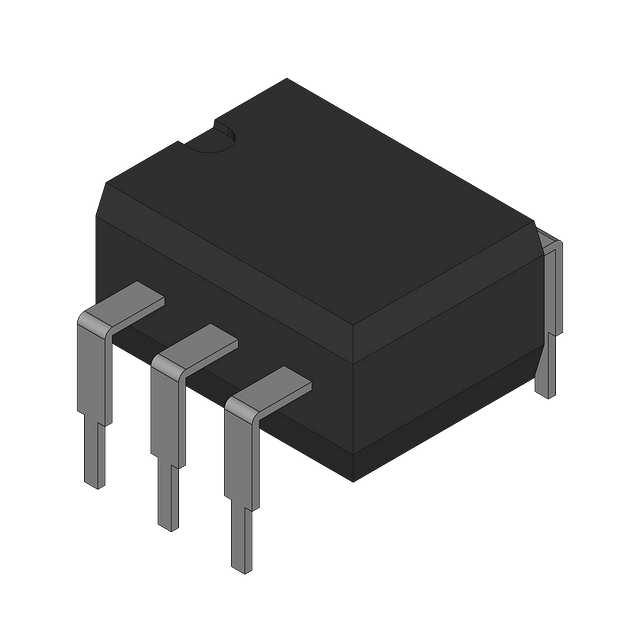

Product Images
