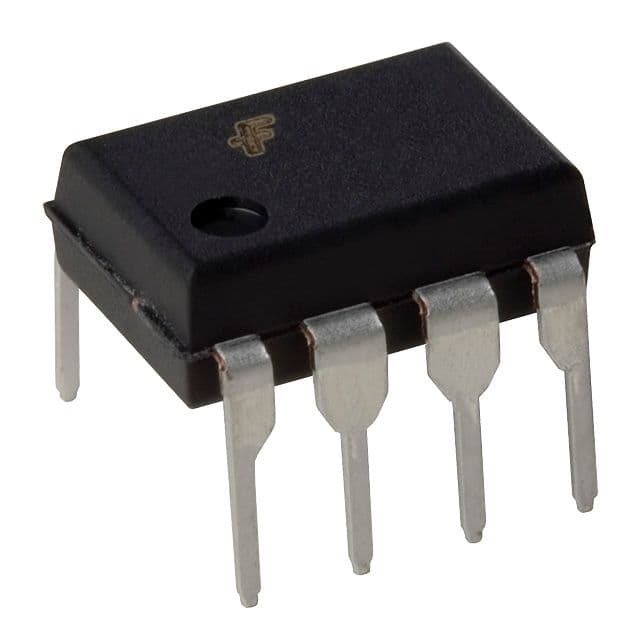

Dual-channel phototransistor output optocoupler featuring a 5kV isolation voltage and 400mV collector-emitter saturation voltage. This 8-pin DIP package supports through-hole mounting and offers a maximum output voltage of 30V with a 30mA maximum collector current per channel. Operating across a temperature range of -55°C to 100°C, it handles 60mA forward current and 60mA maximum input current. The component is RoHS compliant and packaged in bulk for 1000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MCT62 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Forward Current | 60mA |
| Height | 4mm |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Length | 10.18mm |
| Max Collector Current | 30mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 400mW |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Current per Channel | 30mA |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 25V |
| RoHS Compliant | Yes |
| Weight | 0.774g |
| Width | 7mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi MCT62 to view detailed technical specifications.
