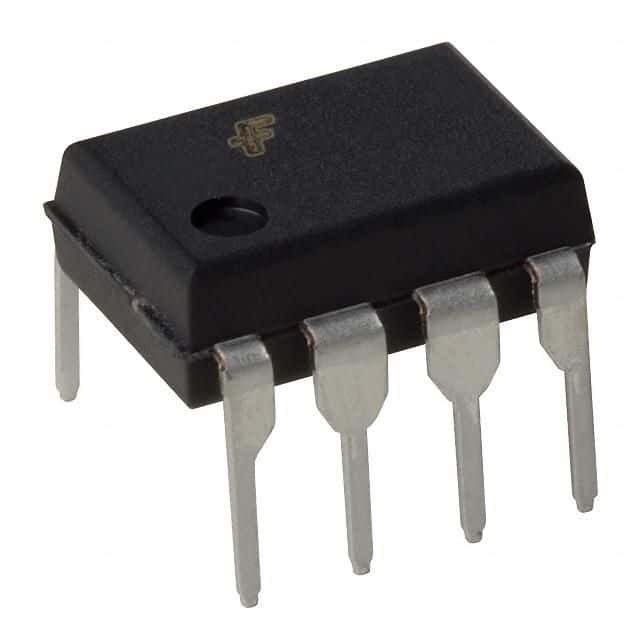

High-speed logic output optocoupler featuring an open-collector output and AC input. This unidirectional, single-channel device offers an isolation voltage of 2.5kV and a maximum output current of 1.5A. With a 1ms fall time and 1ms propagation delay, it is suitable for through-hole mounting in an 8-pin DIP package. Operating within a temperature range of -40°C to 85°C, this RoHS compliant component has a maximum input voltage of 7V and a maximum output voltage of 7V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MID400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Direction | Unidirectional |
| Fall Time | 1ms |
| Forward Current | 30mA |
| Height | 3.94mm |
| Input Current | 30mA |
| Input Type | AC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Max Input Voltage | 7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 7V |
| Max Power Dissipation | 115mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 1 |
| Output Current per Channel | 20mA |
| Output Type | Adjustable |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 115mW |
| Propagation Delay | 1ms |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 7V |
| Weight | 0.819g |
| Width | 6.86mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi MID400 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Onsemi MID400
Product discontinuance notice from onsemi updating the replacement supplier information for MID400, HCPL series, and 6N137 optocouplers.
