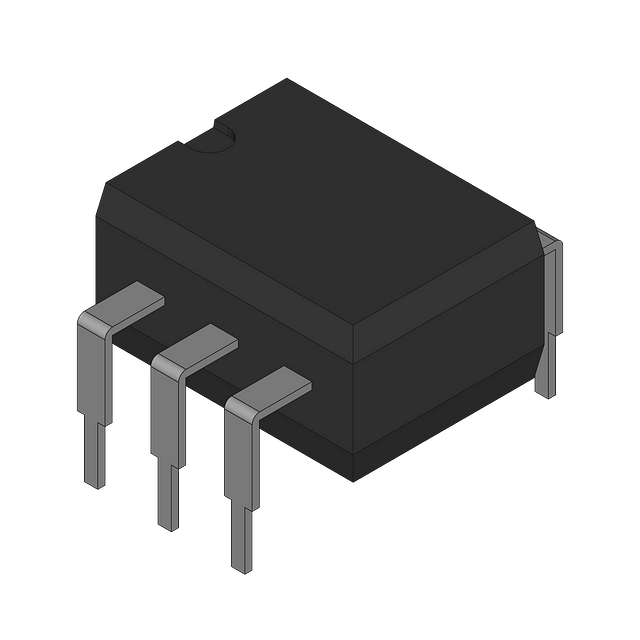

The MOC3011VM is a general purpose optocoupler with a forward current rating of 60mA and a reverse breakdown voltage of 3V. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The device is packaged in a DIP package and is available in a bulk packaging quantity of 1000 units. It is RoHS compliant and has a power dissipation of 330mW. The MOC3011VM is approved by UL, IEC, and EN standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MOC3011VM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, IEC, EN |
| Package/Case | DIP |
| Forward Current | 60mA |
| Hold Current | 100uA |
| Isolation Voltage | 7.5kV |
| Lead Free | Lead Free |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Nominal Input Voltage | 1.15V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 330mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 3V |
| RoHS Compliant | Yes |
| Weight | 0.855g |
| RoHS | Compliant |
