PackageSMD/SMT
MountingSurface Mount, Through Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi MOC3042FR2M technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 60mA |
| Hold Current | 400uA |
| Isolation Voltage | 7.5kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Reverse Breakdown Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MOC3042FR2M Datasheet
Download the complete datasheet for Onsemi MOC3042FR2M to view detailed technical specifications.
No datasheet is available for this part.

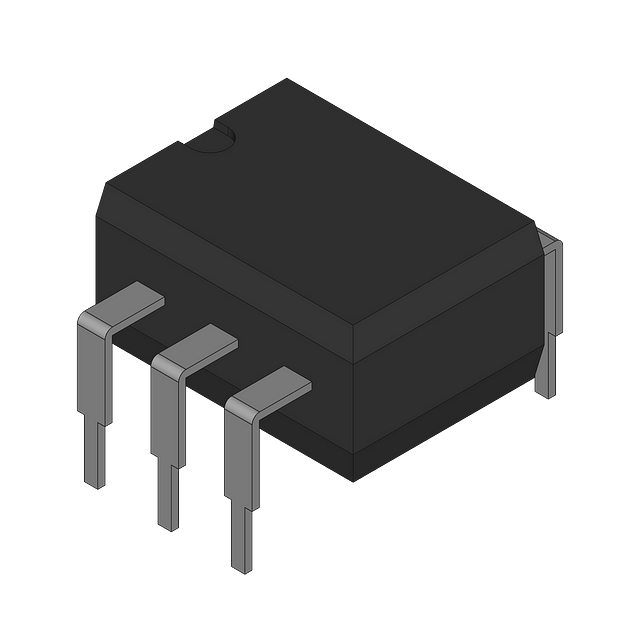

Product Images
