Surface mount triac output optocoupler featuring 600V AC output and 1 channel. This device offers 4.17kV isolation voltage and operates with a 60mA forward current. Key specifications include a 220µA hold current and a maximum input voltage of 1.5V. Designed for surface mounting, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi MOC3052SM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi MOC3052SM technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 60mA |
| Hold Current | 220uA |
| Input Current | 60mA |
| Isolation Voltage | 4.17kV |
| Isolation Voltage-Max | 7.5kV |
| Lead Free | Lead Free |
| Max Input Current | 60mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 600V |
| Max Power Dissipation | 330mW |
| Mount | Surface Mount |
| Nominal Input Voltage | 1.15V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Voltage | 600V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.81g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MOC3052SM Datasheet
Download the complete datasheet for Onsemi MOC3052SM to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

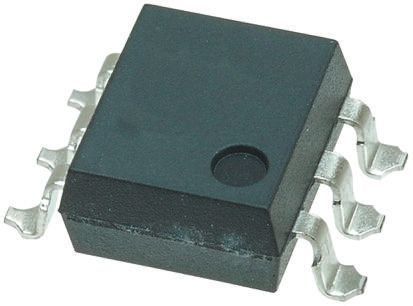

Product Images
