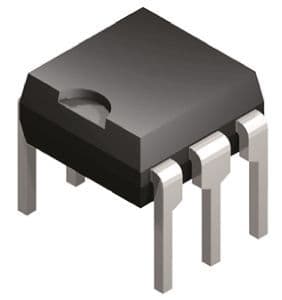

Onsemi MOC3052TVM technical specifications.
| Package/Case | DIP |
| Forward Current | 60mA |
| Hold Current | 220uA |
| Isolation Voltage | 4.17kV |
| Isolation Voltage-Max | 7.5kV |
| Max Input Current | 60mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 330mW |
| Mount | Through Hole |
| Nominal Input Voltage | 1.15V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Packaging | Bulk |
| Power Dissipation | 330mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage | 3V |
| RoHS Compliant | Yes |
| Weight | 0.864g |
| RoHS | Compliant |
