General purpose optocoupler featuring a single DC input channel and a single transistor DC output. Offers 5.3kV isolation voltage and a 30V collector-emitter voltage. Maximum collector current is 50mA with a forward current of 100mA. This 6-pin PDIP package is through-hole mountable and operates from -55°C to 100°C. The device is RoHS compliant and lead-free.
PackageDIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Onsemi MOC8102300 technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 117% |
| Forward Current | 100mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 30V |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MOC8102300 Datasheet
Download the complete datasheet for Onsemi MOC8102300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

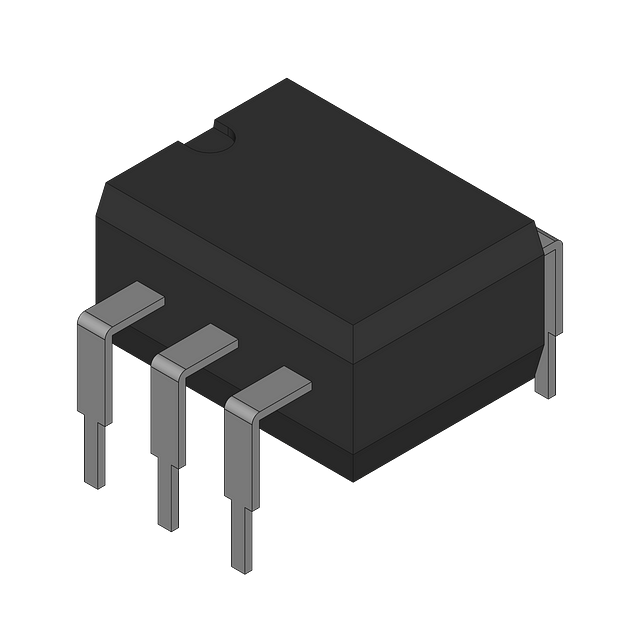

Product Images
