Dual-channel phototransistor output optocoupler in an 8-pin SOIC package. Features a 2.5kV isolation voltage, 400mV collector-emitter saturation voltage, and a maximum collector current of 150mA per channel. Operates with DC input and offers a current transfer ratio of 125%. Designed for surface mounting with a maximum power dissipation of 250mW and an operating temperature range of -40°C to 100°C.
PackageSOIC
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Onsemi MOCD208R2M technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 125% |
| Fall Time | 2.2us |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 150mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Current per Channel | 150mA |
| Output Voltage | 70V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Series | MOCD208 |
| Weight | 0.252g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MOCD208R2M Datasheet
Download the complete datasheet for Onsemi MOCD208R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

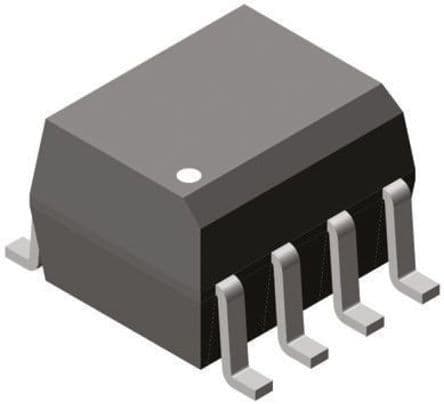

Product Images
