LDO Regulator, 250 mA, High PSRR 5.0 V, SOIC-8 EP, 2500-REEL
PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi NCV8518BPDR2G technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOIC |
| Dropout Voltage | 425mV |
| Lead Free | Lead Free |
| Min Current Limit | 255mA |
| Max Input Voltage | 45V |
| Min Input Voltage | -300mV |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NCV8518BPDR2G Datasheet
Download the complete datasheet for Onsemi NCV8518BPDR2G to view detailed technical specifications.
No datasheet is available for this part.

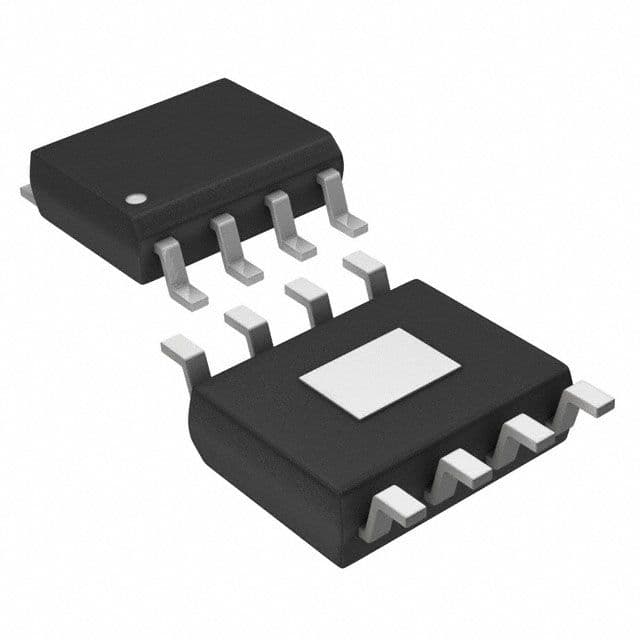

Product Images
