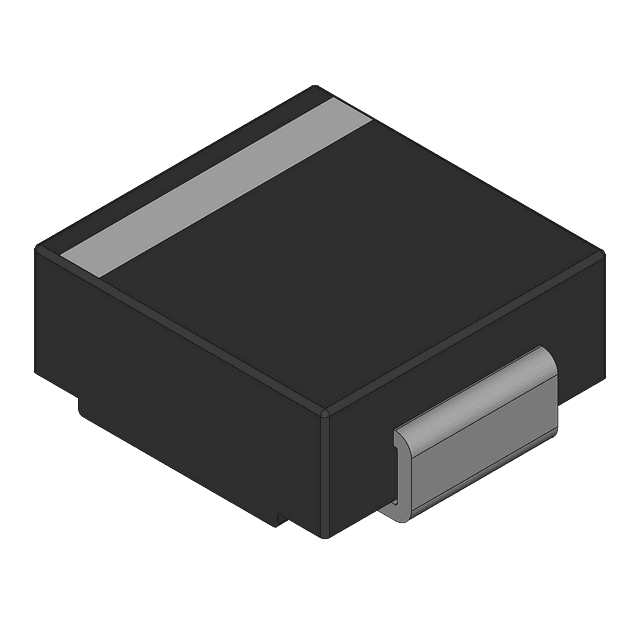

The SMCJ110A Zener diode from Onsemi features a clamping voltage of 177V and a maximum operating temperature of 150°C. It is designed for surface mount applications and has a maximum power dissipation of 1.5kW. The diode is RoHS compliant and has a lead-free construction. It is available in a single unidirectional channel configuration with a peak pulse current of 8.5A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi SMCJ110A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMC |
| Clamping Voltage | 177V |
| Current | 85A |
| Diode Type | ZENER |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Min Breakdown Voltage | 122V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Surge Current | 8.5A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 110V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8.5A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 110V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage | 110V |
| DC Rated Voltage | 110V |
| Width | 6.22mm |
| RoHS | Compliant |
