Technical Specifications
Onsemi SMCJ5V0A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage-Max | 9.2V |
| Direction | Unidirectional |
| Height | 2.75mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Breakdown Voltage | 7V |
| Min Breakdown Voltage | 6.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 1mA |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Peak Pulse Current | 163A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 5V |
| Weight | 0.3g |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SMCJ5V0A Datasheet
Download the complete datasheet for Onsemi SMCJ5V0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

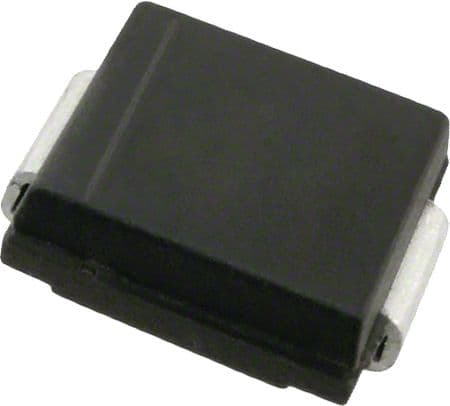

Product Images
