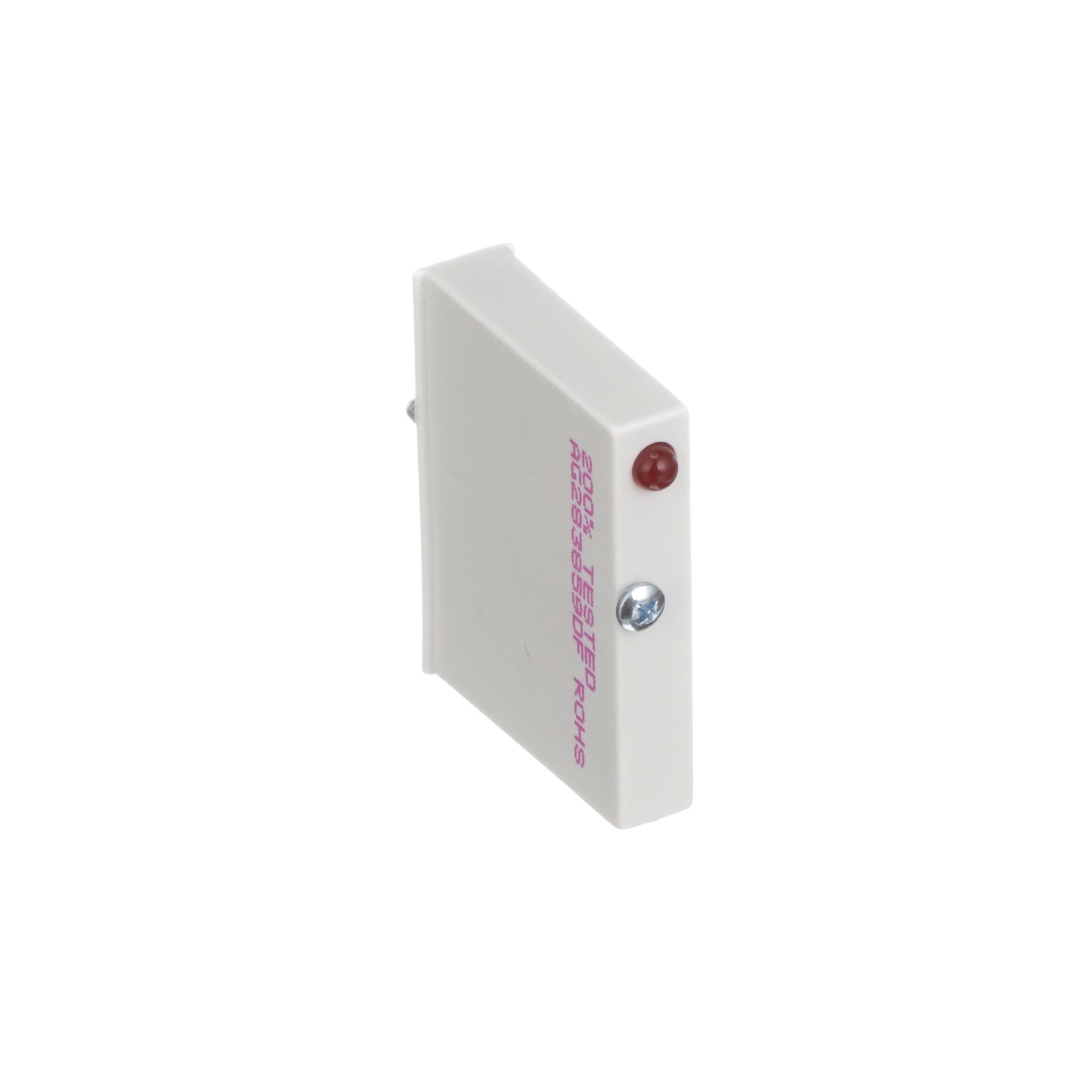

The Opto 22 G4IDC5K is a single channel digital isolator with a DC rated voltage of 16V and an operating supply voltage of 5V. It has a current rating of 30mA and an output current of 50mA. The device is isolated with a voltage of 4kV and has a maximum operating temperature of 70°C and a minimum operating temperature of -30°C. The G4IDC5K is available in a module package with a length of 48.8mm, a width of 12.2mm, and a depth of 41.1mm, and is suitable for PCB and through hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 G4IDC5K datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Current Rating | 30mA |
| Depth | 41.1mm |
| Input Current | 30mA |
| Input Type | DIGITAL |
| Isolation Voltage | 4kV |
| Length | 48.8mm |
| Manufacturer Series | G4 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | PCB, Through Hole |
| Number of Channels | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 50mA |
| Output Type | Voltage, Digital |
| Reach SVHC Compliant | No |
| Turn-Off Delay Time | 0.025ms |
| Turn-On Delay Time | 0.025ms |
| DC Rated Voltage | 16V |
| Width | 12.2mm |
| RoHS | Not Compliant |
