PackageModule
Current Rating3A
MountingRack, PCB, Through Hole, Plug-In
Quick Jump:
Technical Specifications
Opto 22 G4OAC24 technical specifications.
General
Approvals
UL
Package/Case
Module
Current Rating
3A
Depth
0.157inch
Input Current
18mA
Input Type
DIGITAL
Length
1.921inch
Manufacturer Series
G4
Max Input Current
8.1mA
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Rack, PCB, Through Hole, Plug-In
Number of Channels
1
Number of Inputs
1
Number of Outputs
1
Operating Supply Voltage
32V
Output Current
3A
Output Type
Digital
Termination
PC Pins
Throw Configuration
SPST
Turn-On Delay Time
8.3ms
Width
0.48inch
Compliance
RoHS
Not Compliant
Datasheet
Opto 22 G4OAC24 Datasheet
Download the complete datasheet for Opto 22 G4OAC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

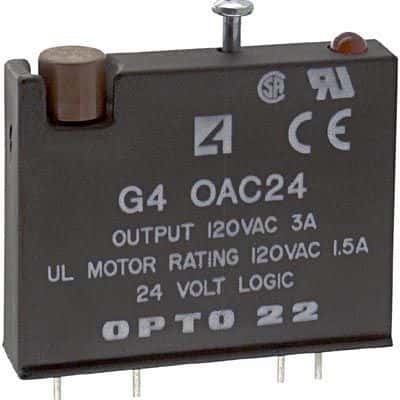

Product Images
