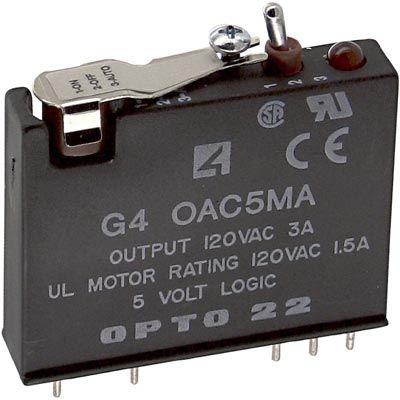

AC output module with a 3A current rating, capable of switching 12-140 VAC. Features a 5 VDC digital input with a 12mA input current and a maximum input current of 8.1mA. This single-channel, SPST module supports rack or PCB mounting and operates within a temperature range of -30°C to 70°C. Includes a manual/auto switch and has a turn-on delay time of 8.3ms.
PackageModule
Current Rating3A
MountingRack, PCB
Quick Jump:
Technical Specifications
Opto 22 G4OAC5MA technical specifications.
General
| Approvals | UL |
| Package/Case | Module |
| Current Rating | 3A |
| Depth | 47.5mm |
| Input Current | 12mA |
| Input Type | DIGITAL |
| Lead Free | Contains Lead |
| Length | 48.8mm |
| Manufacturer Series | G4 |
| Max Input Current | 8.1mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 3A |
| Mount | Rack, PCB |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 3A |
| Output Type | Digital |
| Output Voltage | 140V |
| Throw Configuration | SPST |
| Turn-On Delay Time | 8.3ms |
| Width | 12.2mm |
Compliance
| RoHS | Compliant |
