PackageModule
Current Rating3A
MountingRack, PCB, Through Hole, Plug-In
Quick Jump:
Technical Specifications
Opto 22 G4ODC24 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
Module
Current Rating
3A
Depth
41.1mm
Input Current
18mA
Length
48.8mm
Manufacturer Series
G4
Max Input Current
3A
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Rack, PCB, Through Hole, Plug-In
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
5V
Output Current
3A
Output Type
Digital
RoHS Compliant
Yes
Width
12.2mm
Compliance
RoHS
Compliant
Datasheet
Opto 22 G4ODC24 Datasheet
Download the complete datasheet for Opto 22 G4ODC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

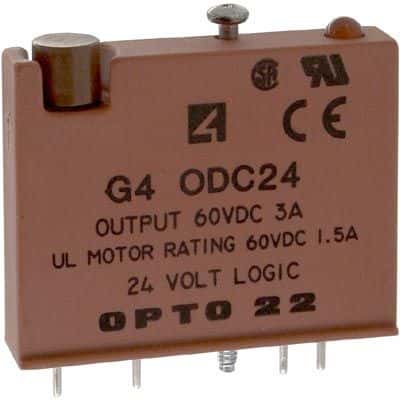

Product Images
