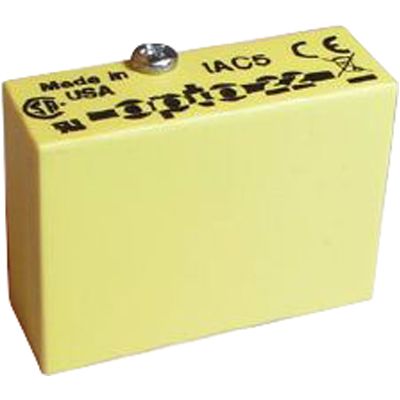

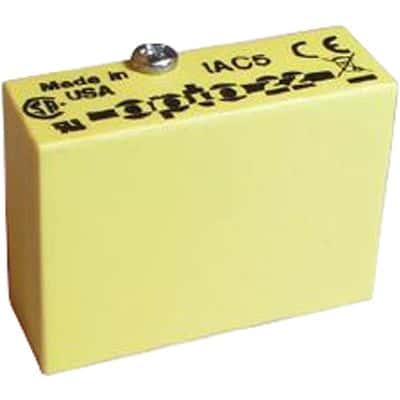

General purpose I/O relay module featuring a single AC input channel. Operates with a minimum input voltage of 90VAC and a maximum of 140VAC, drawing a maximum input current of 5mA. Offers 4000Vrms isolation voltage and a 12mA maximum output current. Designed for PCB mounting with through-hole termination, this module has a 20ms turn-on and turn-off delay time. Operating temperature range is -30°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 IAC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Opto 22 IAC5 technical specifications.
| Approvals | CSA, CE |
| Package/Case | Module |
| Current Rating | 12mA |
| Depth | 0.157inch |
| Height | 31.8mm |
| Input Type | AC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 1.7inch |
| Max Input Current | 5mA |
| Max Input Voltage (AC) | 140V |
| Min Input Voltage (AC) | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 12mA |
| Mount | PCB, Through Hole |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Output Voltage | 6V |
| Reach SVHC Compliant | No |
| Termination | PC Pins |
| Turn-Off Delay Time | 20ms |
| Turn-On Delay Time | 20ms |
| DC Rated Voltage | 5V |
| Width | 0.598inch |
| RoHS | Compliant |
