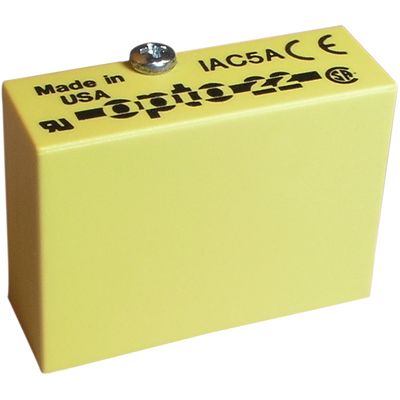

Single-channel AC input module for general I/O applications. Features a 180VAC to 280VAC input range with a 5mA input current and 50mA output current. Offers 4000Vrms isolation and a 5V operating supply voltage. Designed for PCB mounting with through-hole termination and a 20ms turn-on/turn-off delay. Operating temperature range is -30°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 IAC5A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Opto 22 IAC5A technical specifications.
| Approvals | CSA, CE |
| Package/Case | Module |
| Current Rating | 12mA |
| Depth | 31.8mm |
| Height | 31.8mm |
| Input Current | 5mA |
| Input Type | AC |
| Lead Free | Lead Free |
| Length | 31.8mm |
| Max Input Current | 5mA |
| Max Input Voltage (AC) | 280V |
| Min Input Voltage (AC) | 180V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | PCB, Through Hole |
| Number of Analog Inputs | 1 |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 50mA |
| Output Type | Digital |
| Reach SVHC Compliant | No |
| Termination | PC Pins |
| Turn-Off Delay Time | 20ms |
| Turn-On Delay Time | 20ms |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Width | 43.2mm |
| RoHS | Compliant |
