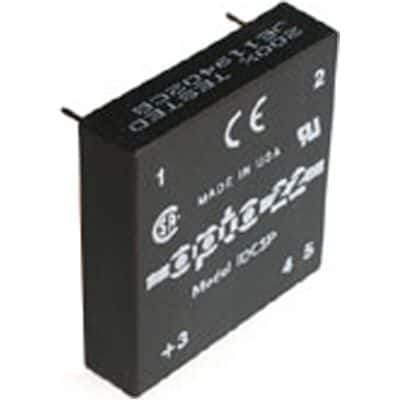

Solid State Relay (SSR) module with AC input and DC output. Features a 50mA load current rating and 50mA output current. Operates with an input voltage range of 12V AC to 32V AC and a 5V DC rated voltage. This single-channel module offers a 5ms turn-on delay and mounts via through-hole or PCB termination. Approvals include UL, CSA, and CE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 IDC5P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Opto 22 IDC5P technical specifications.
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Current Rating | 12mA |
| Depth | 1.51inch |
| Input Current | 25mA |
| Input Type | AC |
| Lead Free | Lead Free |
| Length | 1.41inch |
| Load Current | 50mA |
| Manufacturer Series | Modicon TSX Micro |
| Max Input Current | 25mA |
| Max Input Voltage (AC) | 32V |
| Min Input Voltage (AC) | 12V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of I/Os | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 50mA |
| Primary Type | MODULE |
| Termination | PC Pins |
| Turn-On Delay Time | 5ms |
| DC Rated Voltage | 5V |
| Width | 0.375inch |
| RoHS | Compliant |
