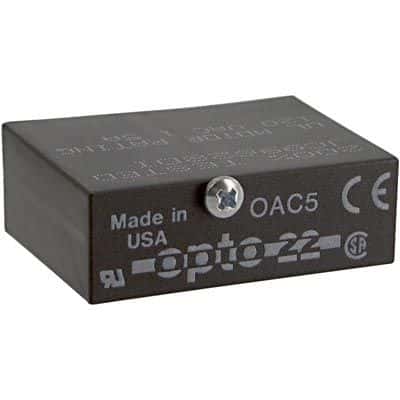

This I/O relay module has a DC rated voltage of 5V and an output current of 3A. It is a single pole, single throw (SPST) relay with a package type of Through Hole/Plug-In. The module has a maximum operating temperature of 70°C and a minimum operating temperature of -30°C. It is approved by UL and is not SVHC compliant. The relay module has a width of 0.598inch, a length of 1.7inch, a height of 31.8mm, and a depth of 0.157inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 OAC5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Package/Case | Module |
| Current Rating | 3A |
| Depth | 0.157inch |
| Height | 31.8mm |
| Length | 1.7inch |
| Max Input Current | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Rack, Through Hole, Plug-In |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Analog |
| Reach SVHC Compliant | No |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 5V |
| Width | 0.598inch |
| RoHS | Compliant |
