The ODC24 is a 24V 3A I/O relay module from Opto 22's Alpha 2 series, offering 4kV isolation voltage and a temperature range of -30°C to 70°C. It is available in a module package with a through hole/plug-in mount and PC pin termination. The module is CSA and CE approved and has a current rating of 3A. It is suitable for use in a variety of applications where high reliability and isolation are required.
PackageModule
Current Rating3A
MountingRack, Through Hole, Plug-In
Quick Jump:
Technical Specifications
Opto 22 ODC24 technical specifications.
General
| Approvals | CSA, CE |
| Package/Case | Module |
| Current Rating | 3A |
| Depth | 0.157inch |
| Isolation Voltage | 4kV |
| Length | 1.7inch |
| Manufacturer Series | Alpha 2 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Rack, Through Hole, Plug-In |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Digital |
| Reach SVHC Compliant | No |
| Termination | PC Pins |
| DC Rated Voltage | 24V |
| Width | 0.598inch |
Compliance
| RoHS | Compliant |
Datasheet
Opto 22 ODC24 Datasheet
Download the complete datasheet for Opto 22 ODC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

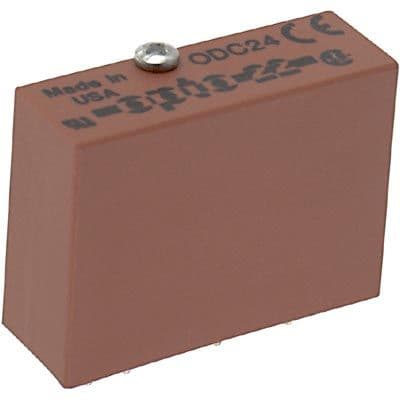

Product Images
